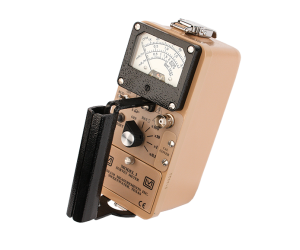

Features
Low price
Rugged
4-Range Analog Ratemeter
Supports GM & Scintillation Type Detectors
Greater than 2000 Hour Battery Life

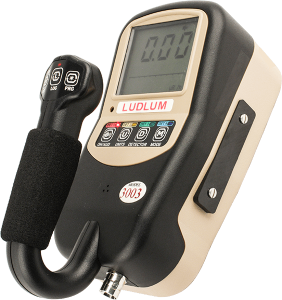

Features
4 Selectable & Configurable Detector Settings
Single Channel Analyzer (SCA)
Alpha, Beta, or Alpha+Beta Measurements
3003i: Internal Detector Option for Accumulated Dose
Rate, Max, Integrated Dose, and Count Modes
4-Button Intuitive Interface for Easy Operation
3-Button Handle Interface for One Handed Control
Digital Calibration, Datalogging, Auto-Ranging, USB
Bluetooth®, True RS-232, and Headphone Options
Lightweight and Ruggedly Built
Large Backlit LCD for Ease of Reading
Alternative to Ludlum Models 18 and 2221

Features
Integrated, Lightweight Design Simplifies Frisking
Protective Rubber Covering Enhances Ruggedness, Water Resistance, and Non-Slip Comfort
Employs Standard 15.51 cm2 GM Pancake Detector
Ratemeter, MAX Hold, and Scaler Operating Modes
Simple Two-Button Operation
Count Rate and Scaler Alarms
Automatic LCD Backlight Activation
Wrist Cuff and Lanyard Included

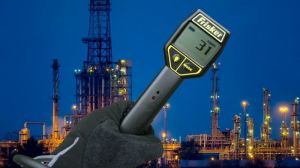

Sick of getting tripped up by cables? Want that free hand back? Tired of lugging around a meter the size of a lunch box? Presenting The Radiation Alert® Frisker. The Radiation Frisker detects alpha, beta, gamma, and X-ray. It has the ability to take readings in multiple different units of measure, customize alarm levels, and comes equipped with a backlit display. The Frisker is a light weight, single-handed radiation contamination instrument that has been designed to meet the demands of today’s radiation personnel for leak testing, surface monitoring, sample screening, and personnel screening. By integrating the latest electronics with a proven and dependable Geiger Mueller detector, S.E. International has created a rugged, ergonomic Geiger counter that addresses a number of radiological applications.

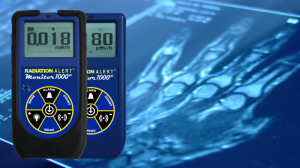

The Monitor 1000EC is an energy compensated radiation detector that measures gamma, and x-rays. Perfect for most applications requiring an energy compensated detector. Users can choose from readings of CPM, CPS, µSv/hr, mR/hr, or in accumulated counts. It has a red count light, a beeper that sounds with each count detected, and includes an adjustable timer, and selectable alert.

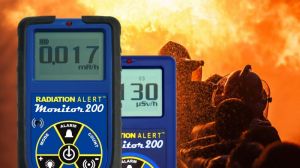

The Monitor 200 measures alpha, beta, gamma, and x-rays. Its digital display shows readings in your choice of CPM, CPS, μSv/hr, mR/hr, or in accumulated counts. It has a digital, easy to read backlit display, a red count light, and a beeper that sounds with each count detected. This unit also includes an adjustable timer and a loud, customizable alert.

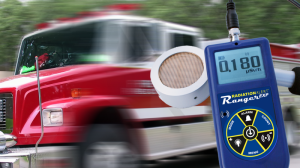

The Ranger EXP is a high performance, durable, lightweight radiation detector for field use or in your facility. The Ranger EXP is designed specifically for individuals operating in tough environments. The small, handheld Geiger counter offers excellent sensitivity to NORM and low levels of alpha, beta, gamma, and x-rays. The digital readout is displayed with a red count light and a beeper sounds with each count detected. Other features include an adjustable timer, selectable alert, and with the free Observer USB Software Family, you can download your collected data, and set alarms!

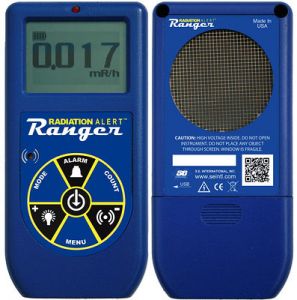

The Radiation Alert Ranger® offers maximum performance in a lightweight, rugged nuclear radiation detector for surveying at the facility or in the field. Though designed with industrial environments in mind, it still has all of the features you’ve come to love in the lab. The Radiation Alert Ranger® is a small, handheld, digital survey meter that offers excellent sensitivity to low levels of alpha, beta, gamma, and x-rays.

This model has built in efficiencies for common isotopes to calculate activity in Bq and DPM. The Ranger also has a backlit digital display, a red count light, and a beeper that sounds with each count detected. Other features include selectable alert levels, an adjustable timer, and an optional wipe test plate for swipes. Internal memory and the free Observer USB Software allow you to download your data, and set computer alarms.With the Free Radiation Alert® Observer BLE app from the Google App Store, you can display the readings from your detectoron your android device, label sample readings and descriptions, take timed counts, append GPS data and send your saved survey file. Alarms set on the instrument will also activate on your android device.

The Free Observer USB software (Windows® only) reads in Total Counts, CPM, µR/hr, mR/hr, CPS, µSv/hr, and has the ability to collect and log data, set alarms, set timed counts, set the calibration date and settings, and generate reports

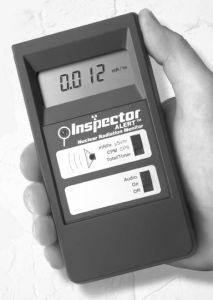

- Máy đo độ phóng xạ của tòan vùng bước sóng alpha, beta, gamma và tia X.

- Đầu dò là ống Halogen-quenched Geiger-Mueller. Đường kính hiệu quả 45mm. Phủ bên ngoài bằng mica có tỉ trọng 1.5~2.0 mg/cm2

- Hiển thị kết quả đo bằng màn hình tinh thể lo`ng 4 chữ số

- Khoảng đo: mR/hr: .001-100.0

CPM: 0-350,000

Total: 1-9,999,000 counts

µSv/hr: .01-1,000

CPS: 0-5,000

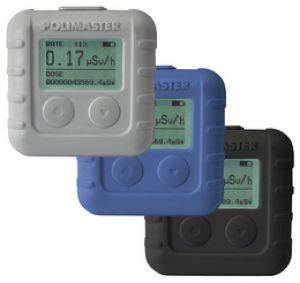

- Máy dò: GM tube
- Hiển thị tốc độ đo: 0.01 µSv/h -12.0 Sv/h (1 µR/h - 1200 R/h), Hp(10) of continuous and pulsed photon radiation (pulse duration not less than 1 ms)
- Độ chính xác của tốc độ đo: ±(15+0.0015/H)% (trong phạm vi 0.1 µSv/h - 10 Sv/h, where H - dose rate in mSv/h)
- Dải đo: of continuous photon radiation 0.05 µSv - 10 Sv (5 µR - 1000 R) of pulsed photon radiation (pulse duration not less than 1 ms) 10 µSv - 10 Sv (1 mR - 1000 R)
- Độ chính xác: ± 20%
- Phạm vi năng lượng: 20.0 keV - 10.0 MeV
- Năng lượng phục hồi gần mức 0.662 MeV (137Cs): -60% từ 20 keV đến 33 keV; -40% từ 33 keV đến 48 keV; ±30% từ 48 keV đến 3 MeV; ±50% từ 3 MeV đến 10 MeV.
- Hoạt động sau khi ảnh hưởng tạm thời bức xạ gamma tối đa cho phép trong vòng 5 phút: 100 Sv/h (10000 R/h)
- Đáp ứng các tiêu chuẩn kĩ thuật: Meets most relevalnt parts of IEC 61526, and ANSI N42.20
- Kiểu báo động: Hình ảnh , âm thanh, và báo rung.
- Thông số vật lí:
+ Kích thước 58 х 58 х 18 mm (2 2/7 x 2 2/7 x 5/7 )
+ Trọng lượng 70 g (2.5 oz)
- Đặc tính môi trường
+ Nhiệt độ: từ -20 lên tới +50 °С (từ -4 lên tới+122 °F)
+ Độ ẩm: lên tới 98% ở 35°C (95°F)
- Bảo vệ môi trường: IP65
- Thả thử nghiệm: 1.5 m (4.9 ft) vào bề mặt gỗ cứng
- Khả năng chống nước:X
- Năng lượng
+ Pin: Pin có thể sạc lại (sạc thông qua USB)
+ Vòng đời pin: 30 ngày
+ Kiểm soát sự tháo pin: hiển thị trên màn hình LCD
- Bổ sung
+ Đồng hồ đếm ngược:X
+ Hiển thị thời gian phơi sáng tối đa:X
+ Chức năng :X
+ Chế độ lịch : X
+ Chế độ kết nối máy tính: USB
