Mô tả

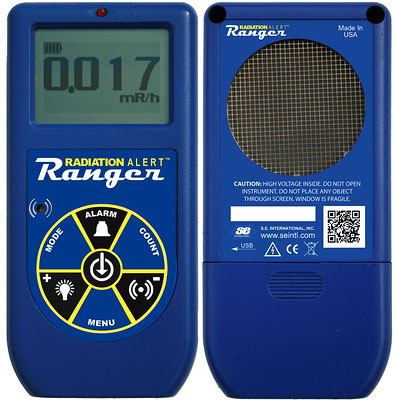

The Radiation Alert Ranger® offers maximum performance in a lightweight, rugged nuclear radiation detector for surveying at the facility or in the field. Though designed with industrial environments in mind, it still has all of the features you’ve come to love in the lab. The Radiation Alert Ranger® is a small, handheld, digital survey meter that offers excellent sensitivity to low levels of alpha, beta, gamma, and x-rays.This model has built in efficiencies for common isotopes to calculate activity in Bq and DPM. The Ranger also has a backlit digital display, a red count light, and a beeper that sounds with each count detected. Other features include selectable alert levels, an adjustable timer, and an optional wipe test plate for swipes. Internal memory and the free Observer USB Software allow you to download your data, and set computer alarms.With the Free Radiation Alert® Observer BLE app from the Google App Store, you can display the readings from your detectoron your android device, label sample readings and descriptions, take timed counts, append GPS data and send your saved survey file. Alarms set on the instrument will also activate on your android device.
The Free Observer USB software (Windows® only) reads in Total Counts, CPM, µR/hr, mR/hr, CPS, µSv/hr, and has the ability to collect and log data, set alarms, set timed counts, set the calibration date and settings, and generate reports
Detector
Operating RangemR/hr – .001 (1µR) to 100 CPM – 0 to 350,000 µSv/hr – .01 to 1000 CPS – 0 to 5000 Total Counts- 1 to 9,999,000 counts |
Energy Sensitivity
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the detector window. 3340 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.
Built-in Efficiencies
Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha
Display
Graphic LCD with Backlight
Anti Saturation
Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.
Averaging Periods
Display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.
Outputs
USB for use with Free Observer USB Software for PCs
Bluetooth for use with the Free Observer BLE App for Android.
Count Light
Red LED flashes with each radiation event.
Audio Indicator
Internally mounted beeper (can be switched off for silent operation)
Power Requirements
USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.
Accuracy
Reference to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional
Selectable Alert Settings
mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.
Temperature Range
-10° to +50°C (14° to 122°F)
Humidity
10% to 70% Non-Condensing.
Size
140 X 68 X 33 mm (5.5 X 2.7 X 1.3 in.)
Weight
291g (0.64 lbs.)
